SF-CH Canister Unit

Install on contaminated air extraction networks

Terminal Hood   >   SF-CH Canister Unit

Description

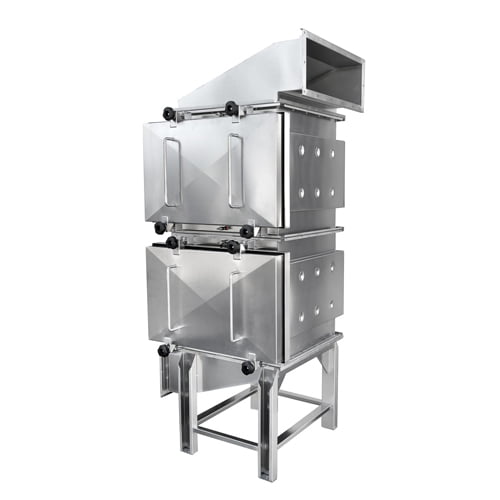

SF-CH Canister unit or bag in bag out is designed to be installed on contaminated air extraction networks. It allows the safe replacement of the soiled filter through a perfectly sealed plastic bag.

Advantages

  • Continuously welded
  • Robust and modular
  • Closing hatch with foolproofing system, guaranteeing the proper insertion of the filter
  • Mechanical Resistance +/-5000 Pa
  • Qualified Unit: Class D (EN 12237), Class C (Eurovent 2/2), L1 (EN 1886)

Specifications

  • Welded Steel 20/10e
  • Epoxy paint RAL 9010, oven-baked
  • Rip Resistant bag with integrated elastic
  • Filter held in place with excentric cams
  • Maximum service temperature: 90°C
  • Stainless Steel Leverage System for Hepa filter
